Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones
Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones - Image 2
Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones - Image 3
Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones - Image 4
Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones - Image 5
Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones - Image 6

Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones

$50.00

Features
Foxeer Cat 4 Mini 1200TVL Starlight FPV Camera 0.00001Lux Less Noise Low Latency for RC FPV Drones
Products Description
Model​​
Foxeer CAT 4 Mini
Resolution​​
1200TVL
​​Sensor Type​​
Sony 1/3″ CMOS
​​Lens​​
M12 2.1mm Low Light Lens
​​Aspect Ratio​​
4:3 (Default) / 16:9 Switchable
​​Field of View (FOV)​​
4:3 – H: 95°, V: 72°, D: 120°
16:9 – H: 95°, V: 53°, D: 110°
​​TV System​​
PAL (Default) / NTSC Switchable
​​Shutter Speed​​
PAL: 1/25 ~ 1/10000 sec
NTSC: 1/30 ~ 1/10000 sec
​​Video Output​​
CVBS Analog Signal
WDR (Wide Dynamic Range)​​
100dB
​​Minimum Illumination​​
0.00001Lux
​​Day/Night Mode​​
EXT / Auto / Color / B&W
​​White Balance​​
Auto
​​Flight OSD​​
Voltage / Camera Title / Time
​​DNR (Digital Noise Reduction)​​
3DNR
​​Input Voltage​​
5V – 20V
OSD Language​​
English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek
Power Consumption​​
95mA ±15% @ 12V DC
​​Working Temperature​​
-10°C to +50°C (RH90% MAX)
​​Dimension​​
22×22mm
​​Working Humidity​​
20% – 80%
​​Weight​​
11.8g (Excluding cable)
​​Storage Temperature​​
-20°C to +70°C

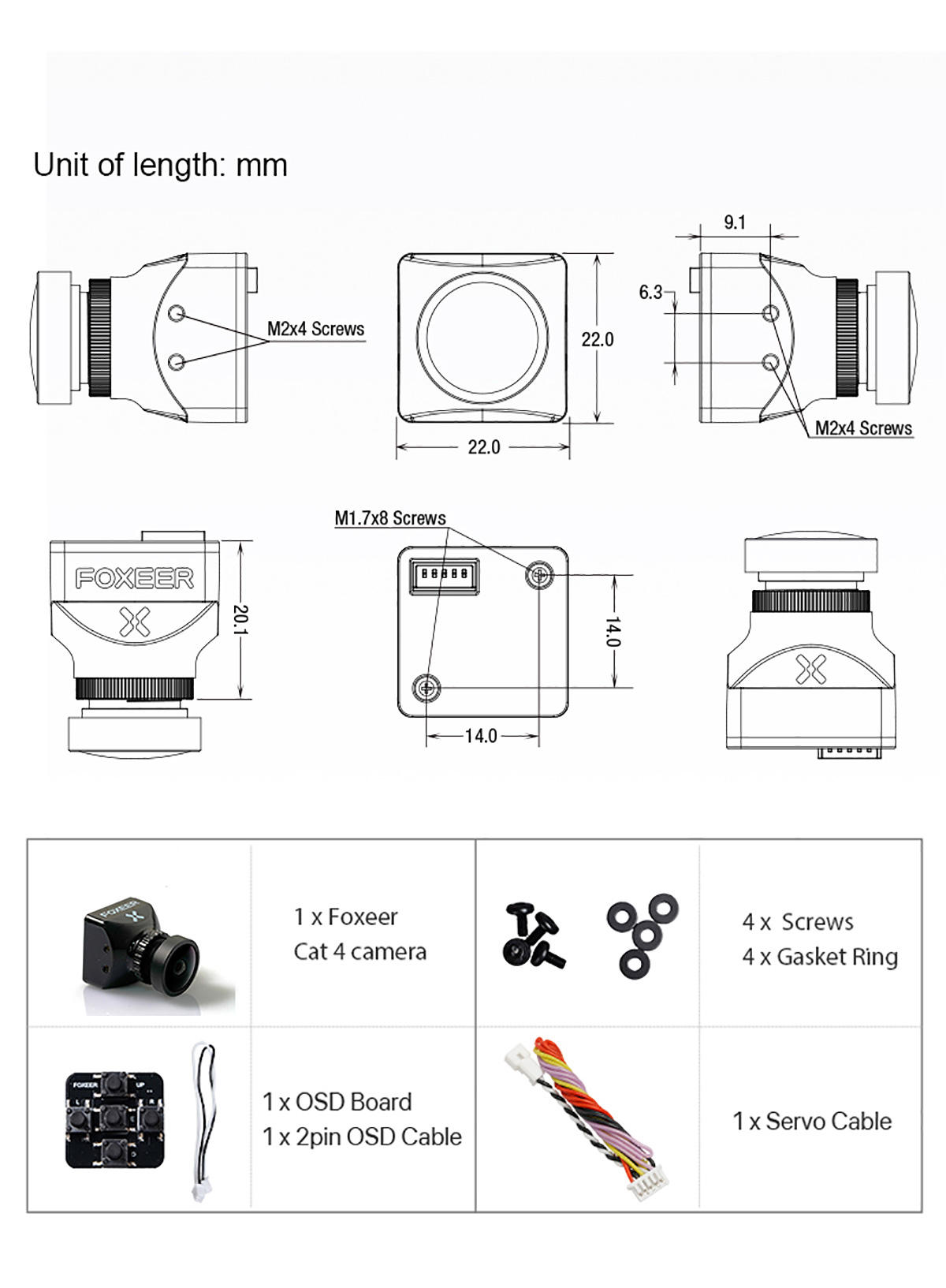

Product packaging
Foxeer Cat 4 camera x1
Screws x4
OSD Board x1
Gasket Ring x4
2pin OSD Cable x1
Servo Cable x1

200 in stock

Category: Tags: , , , ,

Description

Products Description
Model​​
Foxeer CAT 4 Mini
Resolution​​
1200TVL
​​Sensor Type​​
Sony 1/3″ CMOS
​​Lens​​
M12 2.1mm Low Light Lens
​​Aspect Ratio​​
4:3 (Default) / 16:9 Switchable
​​Field of View (FOV)​​
4:3 – H: 95°, V: 72°, D: 120°
16:9 – H: 95°, V: 53°, D: 110°
​​TV System​​
PAL (Default) / NTSC Switchable
​​Shutter Speed​​
PAL: 1/25 ~ 1/10000 sec
NTSC: 1/30 ~ 1/10000 sec
​​Video Output​​
CVBS Analog Signal
WDR (Wide Dynamic Range)​​
100dB
​​Minimum Illumination​​
0.00001Lux
​​Day/Night Mode​​
EXT / Auto / Color / B&W
​​White Balance​​
Auto
​​Flight OSD​​
Voltage / Camera Title / Time
​​DNR (Digital Noise Reduction)​​
3DNR
​​Input Voltage​​
5V – 20V
OSD Language​​
English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek
Power Consumption​​
95mA ±15% @ 12V DC
​​Working Temperature​​
-10°C to +50°C (RH90% MAX)
​​Dimension​​
22×22mm
​​Working Humidity​​
20% – 80%
​​Weight​​
11.8g (Excluding cable)
​​Storage Temperature​​
-20°C to +70°C





Additional information

22*22mm

Key attributes
Material
Metal
Use
Vehicles & Remote Control Toys
Age Range
14 Years & up
Type
RC Drone Spare Parts
Gender
Unisex
Place of Origin
Guangdong, China
Brand Name
Foxeer
Model Number
CAT 4 mini
Sensor Type
Sony 1/3 CMOS Sensor
Scale
4:3(Default)/16:9 Switchable
Tv System
PAL(Default)/NTSC Switchable
Resolution
1200TVL
Lens
M12 2.1mm Low Light Lens
FOV
4:3 FOV-H: 95°,FOV-V: 72°,FOV-D:120°16:9 FOV-H: 95°
Shutter Speed
PAL 1/25-1/10000 sec NTSC 1/30-1/10000 sec
Video Output
CVBS Analog Signal
Minimum Illumination
0.00001Lux
White Balance
Auto
Packaging and delivery
Selling Units
Single item
